Trek FUEL EXe 9.8 GX AXS T-Type

Trek FUEL EXe 9.8 GX AXS T-Type
  • Color: Dark Star
  • Color: Marianas Blue
$9,899.99
Color:
Size: Select size
Wheel Size: 29-Inch
Please select options Unavailable
This item is eligible for free in-store pickup.

Details

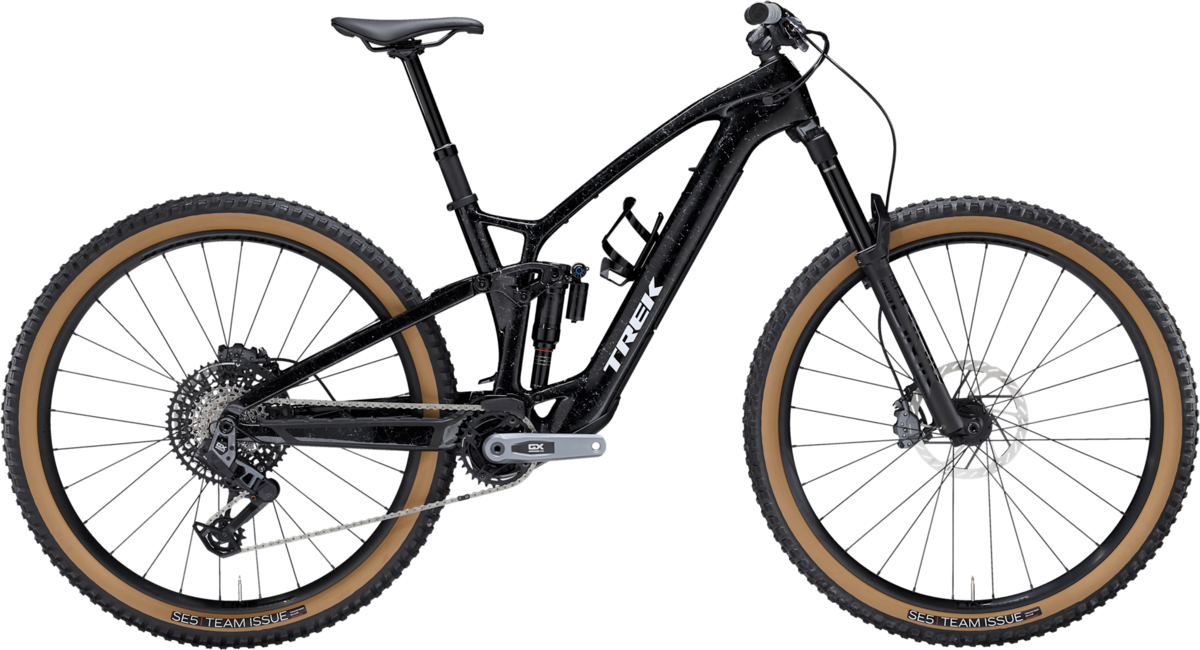

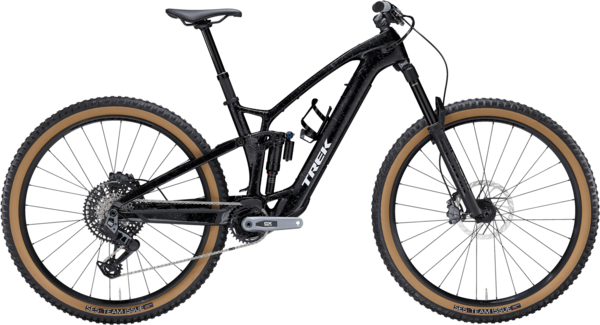

Fuel EXe 9.8 GX AXS takes an evolved approach to e-mountain biking with a revolutionary motor that packs space-age technology in a tiny but mighty package. It's built on a carbon fiber chassis that's light, stiff, and nimble for a lively and playful trail feel. And to keep a good thing going, it's topped off with the wireless shifting technology of a SRAM GX AXS transmission, and the silky-smooth suspension of a RockShox Lyrik Select+ fork and SuperDeluxe Select+ rear suspension.

It's right for you if...
You want a lively trail bike that feels like a traditional mountain bike in quick, techy terrain, but gives you a little boost in pedal power on the way back up. You want space-age technology everywhere from motor to groupset, and upgraded suspension that keeps you floating on the trail. You don't want to lose out on the natural experience of mountain biking, and want a refined motor that quietly assists while you ride.

The tech you get
An OCLV Mountain Carbon frame equipped with a fully-encased 360Wh battery and TQ harmonic pin ring transmission with a smart charging port, integrated LED display, and discreet handlebar remote. Plus, a 150mm RockShox Lyrik Select+ fork with DebonAir spring and Charger 3.1 RC damper, and 140mm RockShox Super Deluxe Select+ rear suspension. The cherry on top? SRAM's GX AXS transmission that keeps shifts crispy, even under load.

The final word
Fuel EXe 9.8 is a refined trail bike with just the right amount of power for scorching climbs before turning around to rally though technical and flow trails alike. It's equipped with future-minded technology, like the space-approved TQ transmission and wireless SRAM GX AXS shifting that keeps your cockpit minimalist. Finally, an upgraded RockShox suspension package keeps you floating on the trail even when the conditions get hairy.

Why you'll love it
- You get a bike that rides like your favorite trail bike on descents and gives you adaptive assist on the climbs that doesn't make you feel like a cheater
- Its tiny but mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, plus it ramps up power with you for a natural ride feel
- The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional mountain bike
- The battery is simple to remove with an Allen wrench — no proprietary tools or black magic necessary
- You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Sizes:
Frame size letterSmallSmallMediumMediumLargeLargeX-LargeX-Large
Geometry position High Low High Low High Low High Low
Wheel size 29" 29" 29" 29" 29" 29" 29" 29"
Seat tube (cm) 38 38 41 41 43.5 43.5 47 47
Seat tube angle 69.3° 68.8° 69.8° 69.3° 70.8° 70.3° 71.3° 70.8°
Effective seat tube angle 77.3° 76.8° 77.3° 76.8° 77.3° 76.8° 77.3° 76.8°
Head tube length (cm) 10 10 11 11 11 11 12 12
Head angle 65.3° 64.8° 65.3° 64.8° 65.3° 64.8° 65.3° 64.8°
Effective top tube (cm) 57.2 57.3 59.9 60 62.9 63 65.6 65.8
Bottom bracket height (cm) 34.1 33.4 34.1 33.4 34.1 33.4 34.1 33.4
Bottom bracket drop (cm) 3.2 3.9 3.2 3.9 3.2 3.9 3.2 3.9
Chainstay length (cm) 43.8 44 43.8 44 43.8 44 43.8 44
Offset (cm) 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4
Trail (cm) 12.4 12.7 12.4 12.7 12.4 12.7 12.4 12.7
Wheelbase (cm) 118.7 118.8 121.6 121.7 124.6 124.7 127.6 127.6
Standover (cm) 73.2 72.6 73.3 72.7 73.9 73.3 75.9 75.3
Frame reach (cm) 43.4 42.8 45.9 45.3 48.9 48.3 51.4 50.8
Frame stack (cm) 61.6 62 62.5 62.9 62.5 62.9 63.4 63.8
Sizes:
SizeRider Height (cm)Rider Height (in)
Small 155 - 165 cm 5'1" - 5'5"
Medium 165 - 176 cm 5'5" - 5'9"
Large 177 - 188 cm 5'10" - 6'2"
X-Large 188 - 195 cm 6'2" - 6'5"

Specs

Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork RockShox Lyrik Select+, DebonAir spring, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Rear Shock RockShox Super Deluxe Select+ RT, 205mm x 60mm
Wheels Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
Tires Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50''
Shifters SRAM AXS POD
Rear Derailleur SRAM GX Eagle AXS, T-Type
Cassette/Freewheel SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain SRAM GX Eagle, T-Type, 12 speed
Brakes SRAM CODE Bronze 4-piston hydraulic disc
Rotors SRAM 6-bolt, 200mm
Handlebars Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Tape/Grips Bontrager XR Trail Elite, nylon lock-on
Stem Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
Seatpost Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 310-450mm length
Saddle Verse Short Comp, steel rails, 145mm width
Pedals Sold Separately
Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery TQ 360Wh
Controller/Display TQ LED display with Bluetooth & ANT+ connectivity
Charger TQ 4A charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Dark Star / Large / 29-Inch 197216022855 5321900 FUE25173788R
Dark Star / X-Large / 29-Inch 197216022862 5321901 FUE26535860R
Marianas Blue / Large / 29-Inch 197216022893 5321904 FUE29249238E
Marianas Blue / X-Large / 29-Inch 197216022909 5321905 FUE30797601E
